Product features
Maximum Working Pressure: 2000psi
Heater size: 10kw
Max hose length: 320ft
Max fluid temp: 190°F
Max output: 28lbs/min
Amps: 230V 3-ph -- 46A
Weight: 585lbs
Dimensions: 32"W 21"D 54"H
· Residential insulation
· Commercial wall insulation

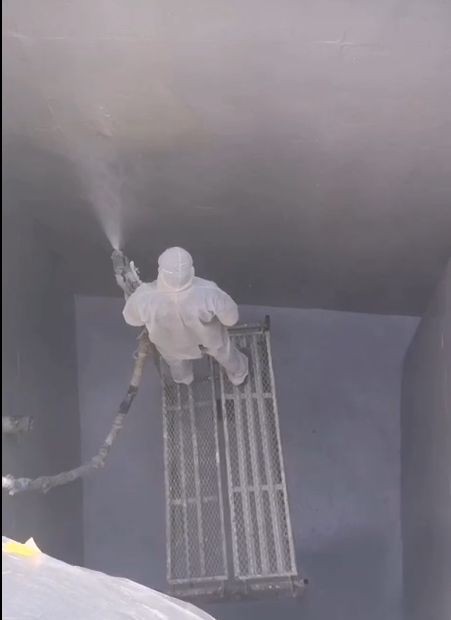

· Roof insulation
· Rim and band joists
· Concrete lifting
· Simple to service with off-the-shelf hardware

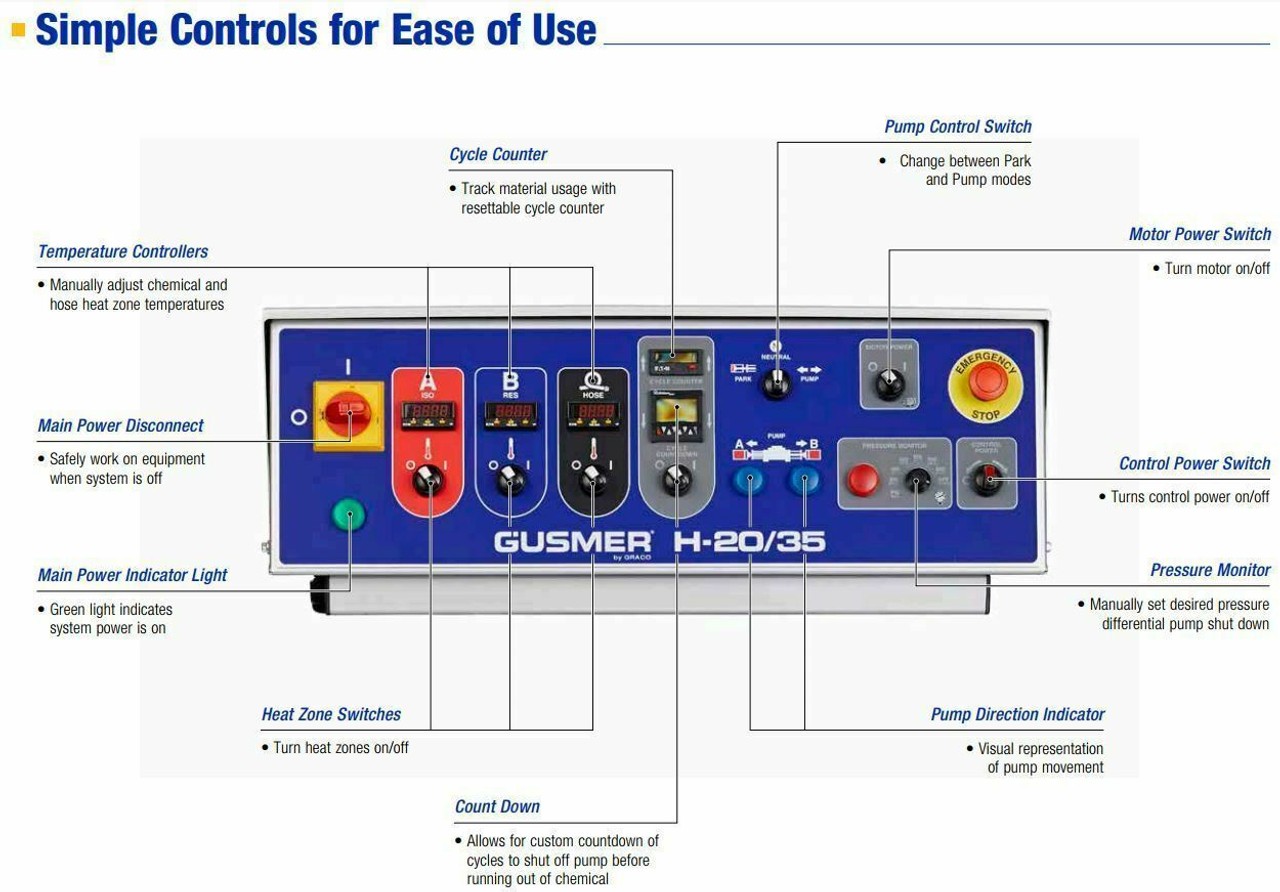

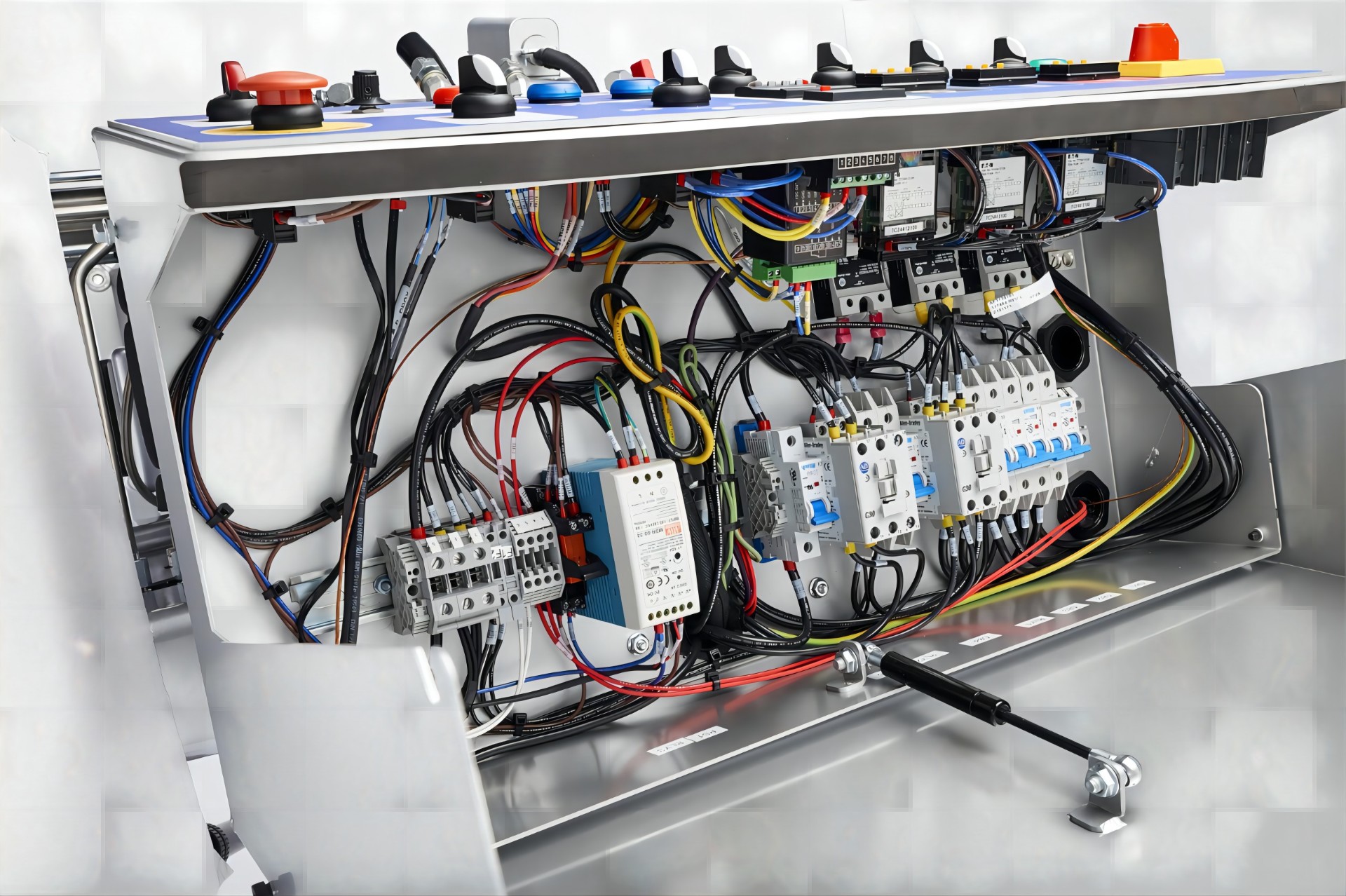

· Easy access and service to the electrical cabinet
· Peace of mind with 10 year warranty on pressure monitoring control hardware
· Best-in-class manufacturing quality you can trust
Product Parameter
| Technical Specifications | |
| Amperage (A) | 46 |
| Application | Spray Foam |
| Applicator Type | Manual |
| Compatible Material | Plural Components |
| Flush Type | Solvent |
| Frequency (Hz) | 50;60 |
| Gun Type | Fusion AP |
| Hose Length (m) | 15.2, 3 |
| Hose Package | Single Hose |
| Includes | Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose |
| Material Application | Polyurethane Foam |
| Maximum Flow Rate (kg/min) | 12.7 |
| Maximum Fluid Temperature (°C) | 88 |
| Maximum Mix Ratio | 1:1 |

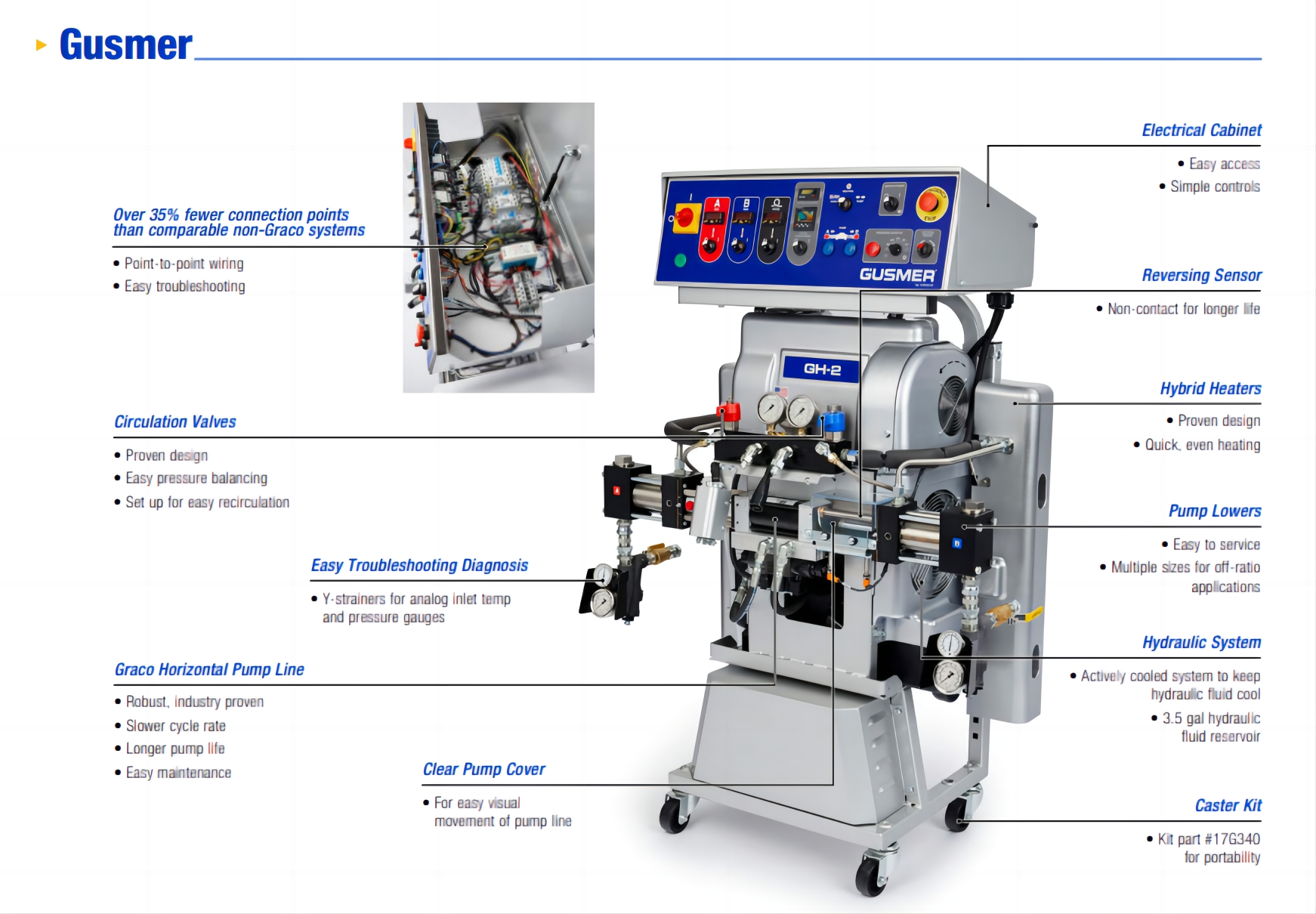

| Model | Gusmer |
| Overall Depth (cm) | 53.3 |
| Overall Depth (mm) | 533 |
| Overall Height (cm) | 137.2 |
| Overall Height (mm) | 1372 |
| Overall Width (cm) | 81.3 |
| Overall Width (mm) | 813 |
| Phase | 3 |
| Power Rating (W) | 10000 |
| Power Rating (kW) | 10 |
| Power Source | Hydraulic |
| Pressure Type | High Pressure |
| Product Type | Plural Component |

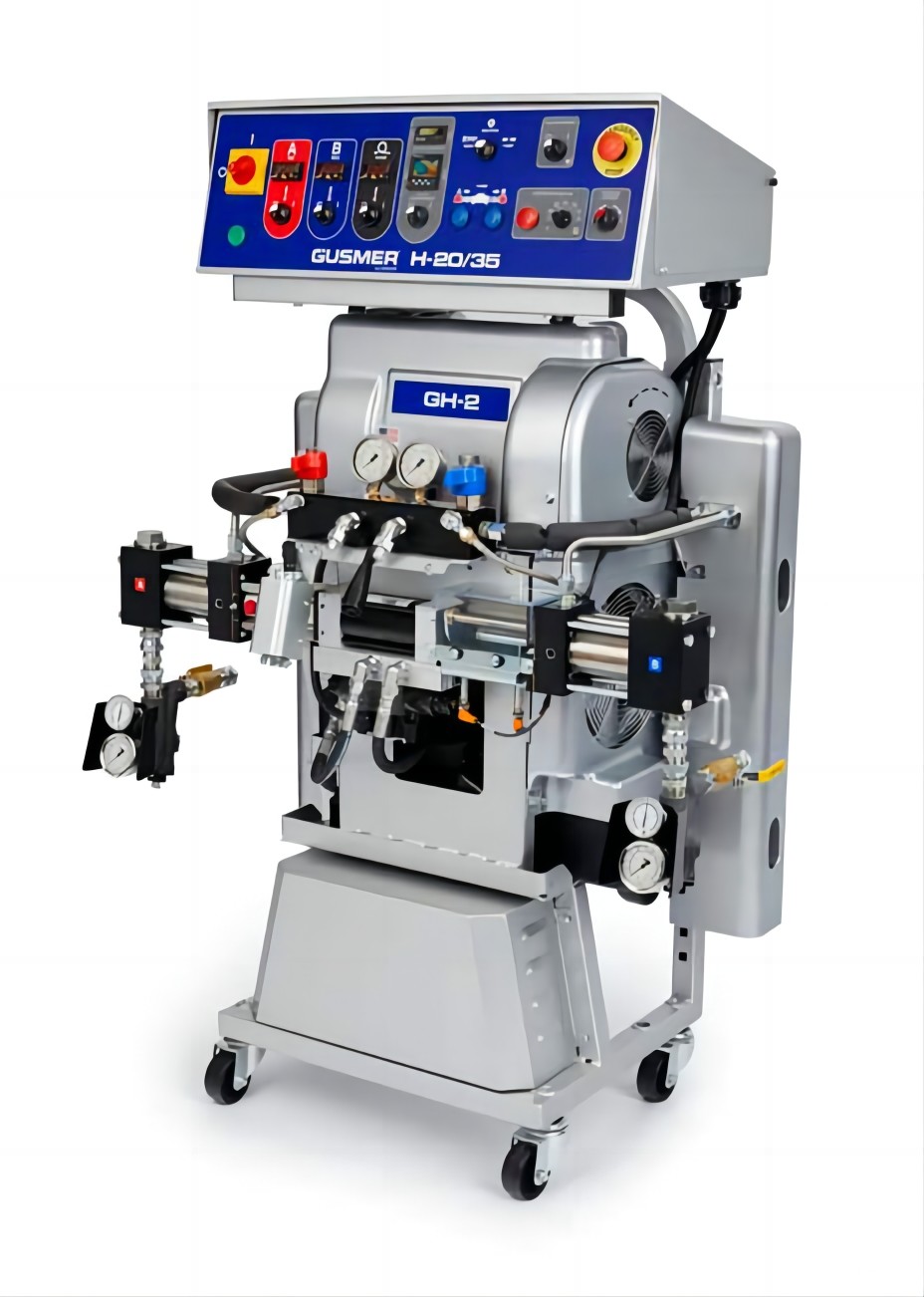

| Series | GH-2 |
| Sound Pressure Level (dB(A)) | 82.6 |
| Type | Proportioner Package |
| Voltage (V) | 230 3 PH |
| Weight (kg) | 265 |
| Wetted Material | Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, UHMWPE |
configuration
