Graco Gusmer H-20/35, GH-2 10kw Heaters 1-ph

Maximum Working Pressure: 2000psi

Heater size: 10kw

Max hose length: 320ft

Max fluid temp: 190°F

Max output: 28lbs/min

Amps: 230V 1-ph -- 79A

Weight: 585lbs

Dimensions: 32"W 21"D 54"H

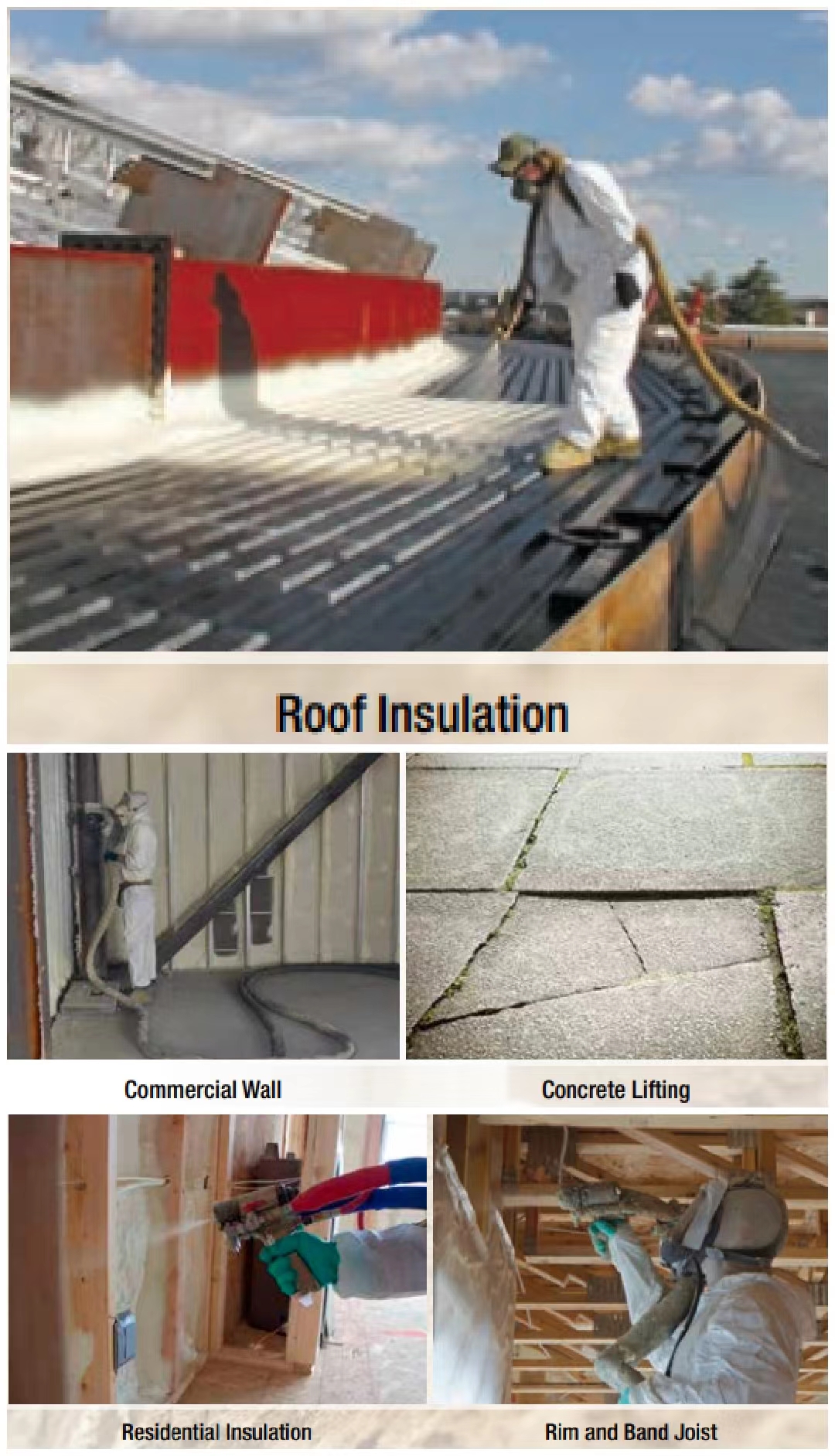

Ideal for a wide range of applications

· Residential insulation

· Commercial wall insulation

· Roof insulation

· Rim and band joists

· Concrete lifting

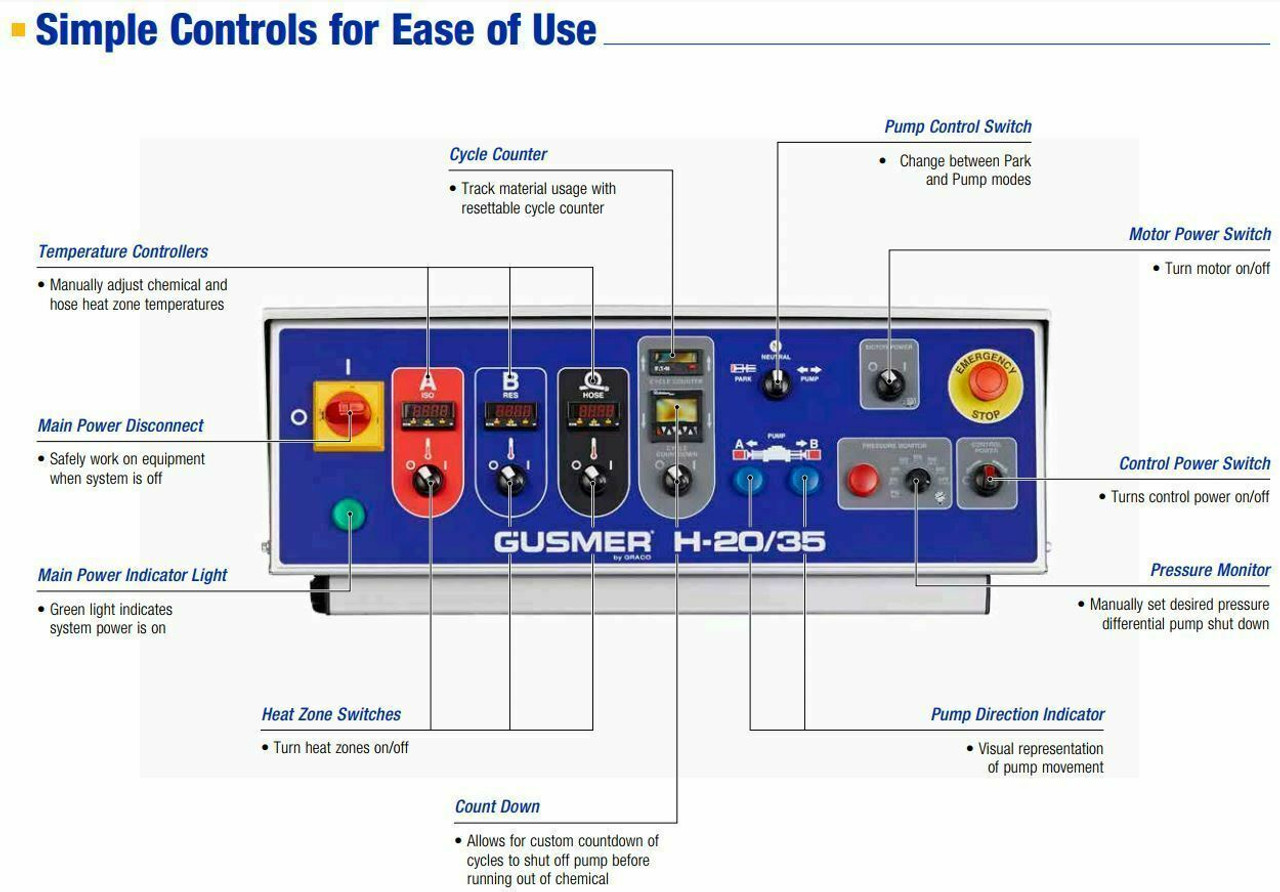

Easy to service

· Simple to service with off-the-shelf hardware

· Easy access and service to the electrical cabinet

· Peace of mind with 10 year warranty on pressure monitoring control hardware

· Best-in-class manufacturing quality you can trust

Bare Packages

26C200GH-2 Base 10kW, 230V, 1-ph

26C201 GH-2 Base 10kW, 230V, 3-ph

26C202GH-2 Base 10kW, 400V, 3-ph

Basic Packages

(Includes system, gun, 10 ft whip hose and one 50 ft hose section)

APC200 Fusion AP package, GH-2 Base 10kW, 230V, 1-ph

APC201 Fusion AP package, GH-2 Base 10kW, 230V, 3-ph

APC202 Fusion AP package, GH-2 Base 10kW, 400V, 3-ph

CSC200 Fusion CS package, GH-2 Base 10kW, 230V, 1-ph

CSC201 Fusion CS package, GH-2 Base 10kW, 230V, 3-ph

CSC202 Fusion CS package, GH-2 Base 10kW, 400V, 3-ph

P2C200 Probler P2 package, GH-2 Base 10kW, 230V, 1-ph

P2C201 Probler P2 package, GH-2 Base 10kW, 230V, 3-ph

P2C202 Probler P2 package, GH-2 Base 10kW, 400V, 3-ph

Additional Hose Packages Packages

(Includes system, gun, 10 ft whip hose and five 50 ft hose sections)

APC200 Fusion AP package, GH-2 Base 10kW, 230V, 1-ph

APC201 Fusion AP package, GH-2 Base 10kW, 230V, 3-ph

APC202 Fusion AP package, GH-2 Base 10kW, 400V, 3-ph

CSC200 Fusion CS package, GH-2 Base 10kW, 230V, 1-ph

CSC201 Fusion CS package, GH-2 Base 10kW, 230V, 3-ph

CSC202 Fusion CS package, GH-2 Base 10kW, 400V, 3-ph

P2C200 Probler P2 package, GH-2 Base 10kW, 230V, 1-ph

P2C201 Probler P2 package, GH-2 Base 10kW, 230V, 3-ph

P2C202 Probler P2 package, GH-2 Base 10kW, 400V, 3-ph
