Product features
Reactor 3 E-XP2 Pro Tier polyurea proportioner package, 200 ft external heated hose, 10 kW
Part Number: EHR341
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications.
Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimise spray parameters and maximise productivity.
The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications.
The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.
Auto pressure balance
Automatically adjusts temperatures to optimise fluid pressures and maximise yield
Power management
Select the desired heater wattage for reduced power consumption
Cellular software updates
Automatically stay up to date with the latest Reactor software
Touchscreen advanced display module (ADM)
A large new touchscreen interface
Intuitive operation and navigation
All spray operations controllable from one screen
Independent hose control
Control A and B materials to different temperatures for improved pressure balancing
Optimises yield
Advanced electric design
A brushless motor for improved pressure/flow performance
New temperature control boards for independent hose heat
Voltage jumpers for easy changing between voltages
The robust UL listed electrical hose connectors are colour coded and keyed for error proof assembly
Reduced size
The reduced footprint provides additional room in your rig
The compact design protects the flow meters and hose connections from being damaged in your rig
Applications
· Roof Coatings

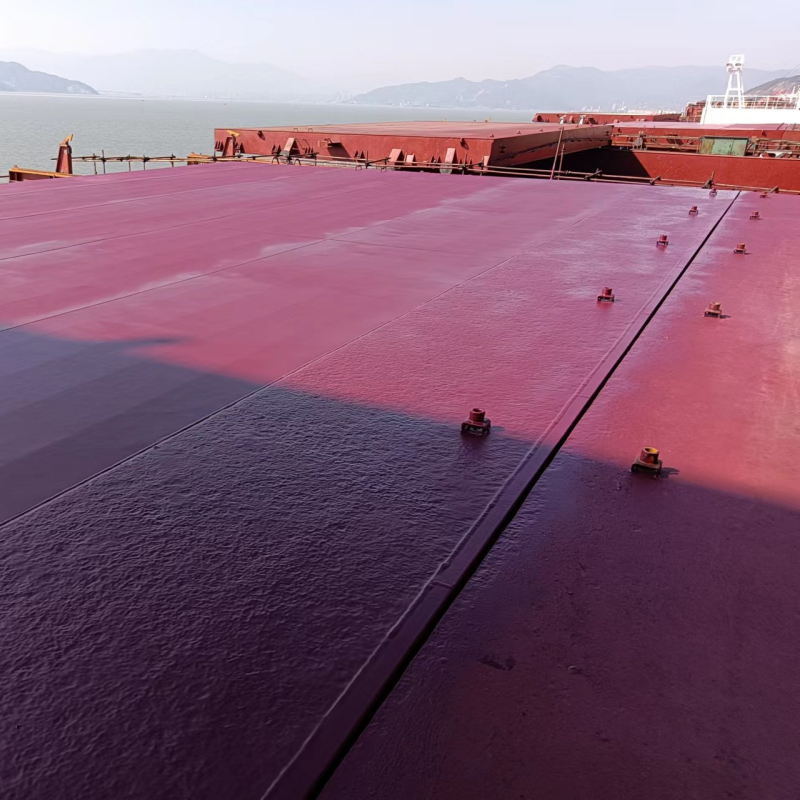

· Ship Building & Marine
· Bridge Protective Coatings
· Pipe and Tank Coating
· Water Tower Protective Coatings
· Wastewater Treatment
· Corrosion Control
· Offshore Rigs
· Waterproofing
· Roof and Wall Insulation
Product Parameter
| Technical Specifications | |
| Frequency (Hz) | 50/60 |
| Hose Heating Type | Externally heated |
| Maximum Flow Rate (L/min) | 7.6 |
| Maximum Fluid Temperature (°C) | 88 |
| Maximum Spray Pressure (MPa) | 24.1 |
| Maximum Spray Pressure (bar) | 241 |
| Maximum Spray Pressure (psi) | 3500 |
| Model | Reactor 3 |
| Power Rating (kW) | 15 |
| Product series | Pro |
| Series | E-XP2 |
| Transfer pumps | Transfer pumps |
| Type | Proportioner Package |
| Voltage (V) | 200-240 VAC, 1–ph, 200-240 VAC, 3–ph DELTA, 350-415 VAC, 3–ph WYE |
| Weight (kg) | 143 |
